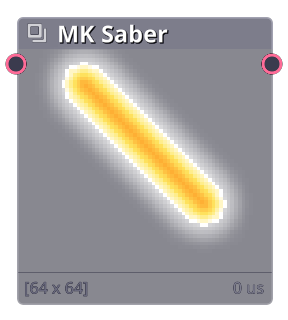

MK Saber
Generate glowing saber from 2 points.
Node Data | |
|---|---|
 | |
Display name | |
MK Saber | |
Internal name | |
Node_MK_Saber | |
Inheritances | |
| Node_Processor | |
| Node_MK_Saber | |
Inputs | |
vec2 |
Dimension |
Saber | |
vec2 |
Point 1 |
vec2 |
Point 2 |
int |
Thickness |
bool |
Fix Length |
Render | |
gradient |
Color |
int |
Gradient Step |
slider |
Glow Intensity |
int |
Glow Radius |
Trace | |
int |
Trace |
surface |
Trace Texture |
Outputs | |
surface |
Surface Out |
Draw glowing line.
Properties
| Saber | |
| Point 1 | Line position. |
| Point 2 | Line position. |
| Thickness | Line thickness. |
| Fix Length | Force the Point 2 to keep uniform distance when animating. |
| Render | |
| Color | Set color gradient over thickness. |
| Gradient Step | Width of each gradient step. |
| Glow Intensity | Line glow intensity. |
| Trace | |
| Trace | Draw line from previous frames for a trail effect. |
| Trace Texture | Apply texture to the trail. |
Commit History
| 1.16.0 |
|
|---|
Related Links
- Base Code: /scripts/node_mk_saber/node_mk_saber.gml
